5. PROGRAM OPERATION

The program can read the content of the log using HART protocol, ELink adapter and

Infra-Red (IrDA) SAP-200 display unit.

The program is capable of the following:

• Configuring logger functions;

• Reading the log (downloading from the logger in the device);

• Saving log to file;

• Reading log from file;

• Exporting log to ASCII text file;

• Exporting log to DBase file;

• Displaying trend.

5.1. STARTING THE PROGRAM

The program can be launched from Start/Programs/Nivelco/Datascope menu.

5.2. SELECTING COMMUNICATION

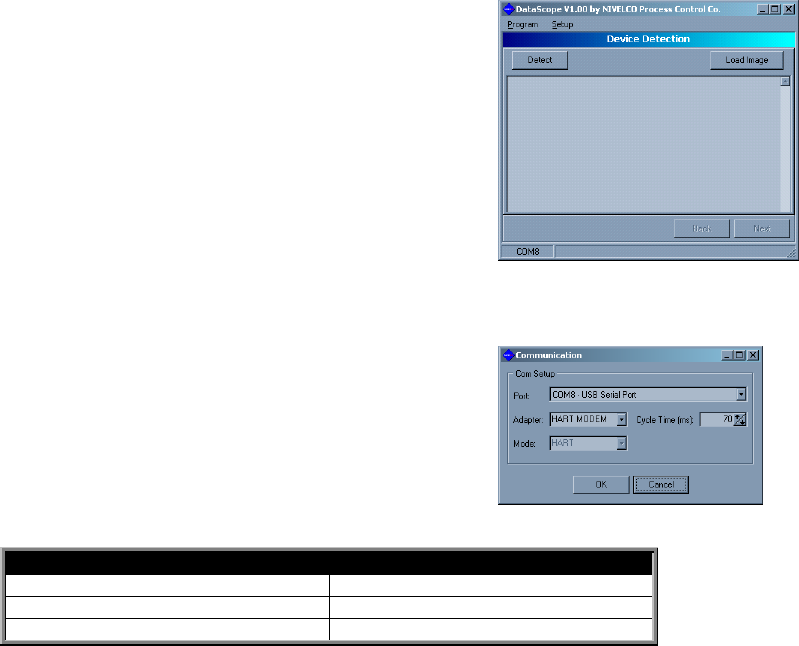

Communication can be set in the Setup/Communication menu (figure 2)

• Port: select the port for communication device

• Adapter: select the type of device (HART modem, ELink adapter, SAP-200 IrDA)

• Mode: operating mode of the selected device

• Cycle Time: in case of a communication error, the query can be slowed down. A

greater value results in slower querying.

Type of communication device Read time

HART modem (HART protocol) approx. 3 hrs.

ELink Adapter approx. 10 min.

SAP200 - IrDA Adapter approx. 10 min.

figure 1

figure 2
